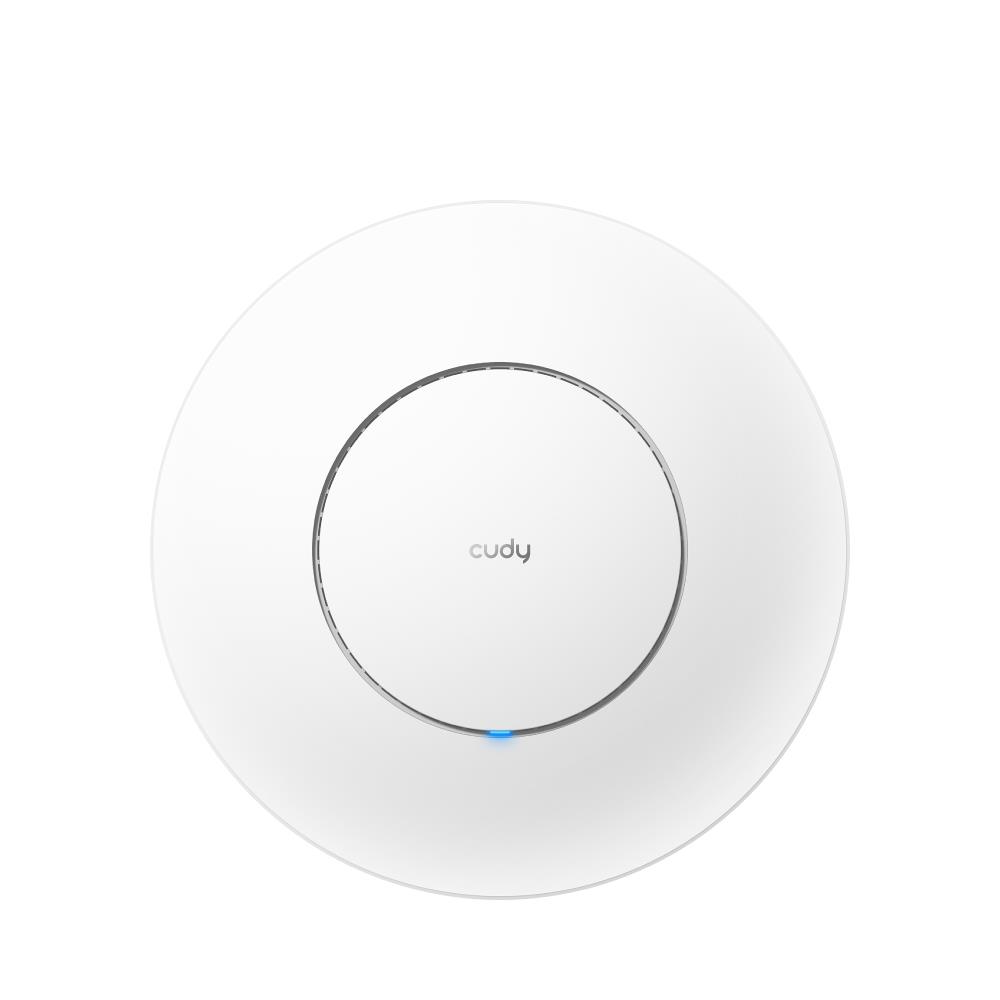

CUDY AP1300 DUAL BAND WIFI ACCESS POINT ΟΡΟΦΗΣ, BEAMFORMING, MIMO, POE

● AC1200 Dual Band Wi-Fi Speed
● MT7621DA+MT7613B+MT7603E
● 1× Gigabit WAN/LAN (PoE In)
● 802.3at/af PoE, Passive PoE, or DC (DC adapter included)
● Multi-Mode: AP/Router/RE/WISP
● Mesh

Hardware FeaturesHighlightsCPU: 880 MHz Dual-Core ProcessorFlash: 16 MB (128 Mbit)DDR: 128 MB (1 Gbit)Interface1× Gigabit Ethernet Port (PoE In)1× Reset Button1× DC JackPower Supply802.3af/at PoE24-57 V Passive PoE (+4,5pins; -7,8pins)

12 V ⎓ 1A DC

Power ConsumptionIdle: 4 W

PoE Max: 11 W

DC Max: 7.5 W

Dimensions ( W×D×H )232×232×57.1mmAntenna Type

4× Internal Omni-directional Antennas

MountingCeiling/Wall Mounting (Kit included)Wireless FunctionWireless Standards

Wi-Fi 5 (802.11ac/n/g/b/a)

Frequency2.4 GHz and 5 GHzSignal Rate5 GHz: Up to 867 Mbps2.4 GHz: Up to 300 MbpsChannel Width20/40/80 MHz

Wireless Functions

(Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023)

(Features with △ require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28)

Multiple SSID*Captive Portal*Seamless Roaming Mesh△Self-Organizing Mesh△Band Steering*Auto Channel Optimization*Enable/Disable Wireless RadioTransmit Power Control QoS (WMM)MU-MIMOBeamformingRate LimitReboot ScheduleWireless ScheduleWireless EncryptionWPA-PSKWPA2-PSKWPA-PSK/WPA2-PSK

Security

(Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023)

IP/MAC FilteringAP Isolation*Operating ModesWireless Access Point ModeWireless Router ModeWireless Extender ModeWISP ModePackage ContentAccess Point DC AdapterMounting KitInstallation GuideEnvironmentsOperating Temperature: 0~40 °C (32~104 °F)Storage Temperature: -40~70 °C (-40~158 °F)Operating Humidity: 10~90% RH non-condensingStorage Humidity: 5~90% RH non-condensingSystem RequirementsWindows, MAC OS, NetWare, UNIX, or LinuxFirefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Javascript-enabled browserA fiber/cable/DSL Modem, or other devices providing wired internet Subscription with an internet service provider for internet accessA power socket for AC power supply, or PoE power supply

Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023.

Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28.
