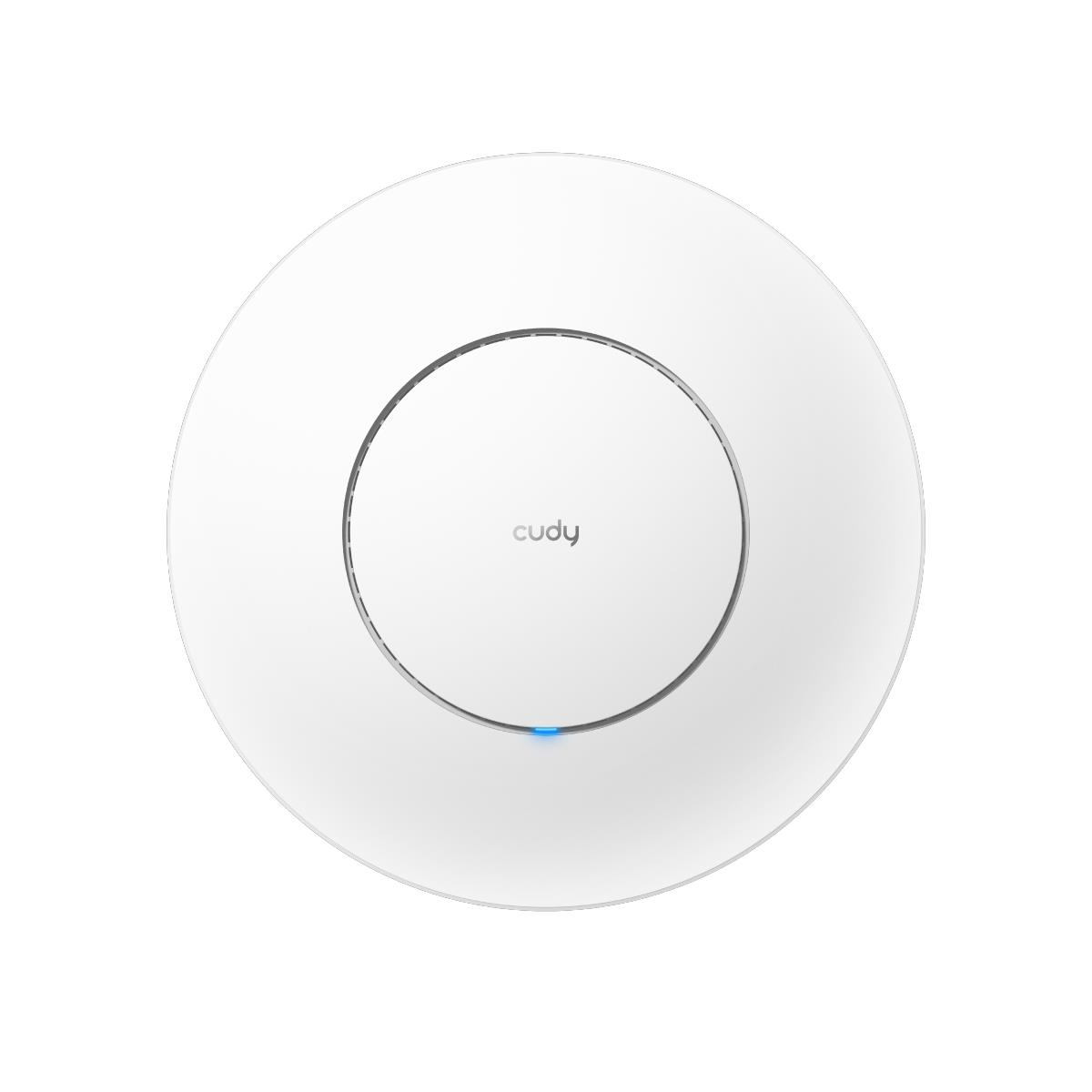

CUDY AP3000_P AX3000 DUAL BAND ACCESS POINT ΟΡΟΦΗΣ, MU-MIMO, ΜΕ POE INJECTOR

● Premium AX3000 Wi-Fi 6
● Shielded 2.5G Port for Multi-Gig Throughput
● Maximum 512 Clients with 512 MB Large RAM
● Five Antennas for Broader Wi-Fi Coverage
● 802.3at/af PoE, Passive PoE, or DC Powering
● Mesh with Cudy Mesh Router / AC
● Config Radius Server for AAA Feature
● PoE Adapter Included

Hardware Features Highlights CPU: 1.3 GHz Dual-Core ARM CPU Flash: 256 MB NAND (2 Gbit) DDR: 512 MB DDR4 (4 Gbit) Interface 1× 2.5 Gbps Ethernet Port (PoE In) 1× Reset Button 1× DC Jack Power Supply 802.3af/at PoE 48-57 V Passive PoE (+4,5pins; -7,8pins)

12 V ⎓ 1.5 A DC

Power Consumption

PoE Idle: 5.7 W

12 V DC Idle: 6.1 W

PoE Max: 12 W

12 V DC Max: 11 W

48 V DC Max: 12 W

Dimensions (Dia.×H ) Φ231.9×57.1 mm (Φ9.13×2.25 inches) Antenna Type

4× Internal Omni-directional Antennas

Mounting Ceiling/Wall Mounting (Kit included) Wireless Function Wireless Standards

Wi-Fi 6 (802.11ax/ac/n/g/b/a)

Frequency 2.4 GHz and 5 GHz Signal Rate 5 GHz: Up to 2402 Mbps 2.4 GHz: Up to 571 Mbps Channel Width 20/40/80/160 MHz

Wireless Functions

(Features with * require a Cudy AC as the gateway. Cudy AC is coming soon)

(Features with ** require a Cudy WR1300/WR3000 or Cudy AC as the gateway)

Multiple SSID * Captive Portal ** Seamless Roaming Mesh Self-Organizing Mesh Band Steering * Auto Channel Optimization * Enable/Disable Wireless Radio Transmit Power Control  QoS (WMM) MU-MIMO Beamforming Rate Limit Reboot Schedule Wireless Schedule Wireless Encryption WPA-PSK, WPA2-PSK, WPA3-SAE, WPA-PSK/WPA2-PSK, WPA2-PSK/WPA3-SAE

Security

(Features with * require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023)

IP/MAC Filtering AP Isolation* Operating Modes Wireless Access Point Mode Wireless Router Mode Wireless Extender Mode WISP Mode Package Content Access Point  PoE Adapter Mounting Kit Installation Guide Environments Operating Temperature: 0~40 °C (32~104 °F) Storage Temperature: -40~70 °C (-40~158 °F) Operating Humidity: 10~90% RH non-condensing Storage Humidity: 5~90% RH non-condensing System Requirements Windows, MAC OS, NetWare, UNIX, or Linux Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other web browser A fiber/cable/DSL Modem, or other devices providing wired internet  Subscription with an internet service provider for internet access A power socket for AC power supply, or PoE power supply

Advanced business AP features require a Cudy AC as the gateway, Cudy AC is coming soon in late 2023.

Mesh features require a Cudy Mesh unit/Mesh router or AC as the gateway with firmware newer than 15.28.
