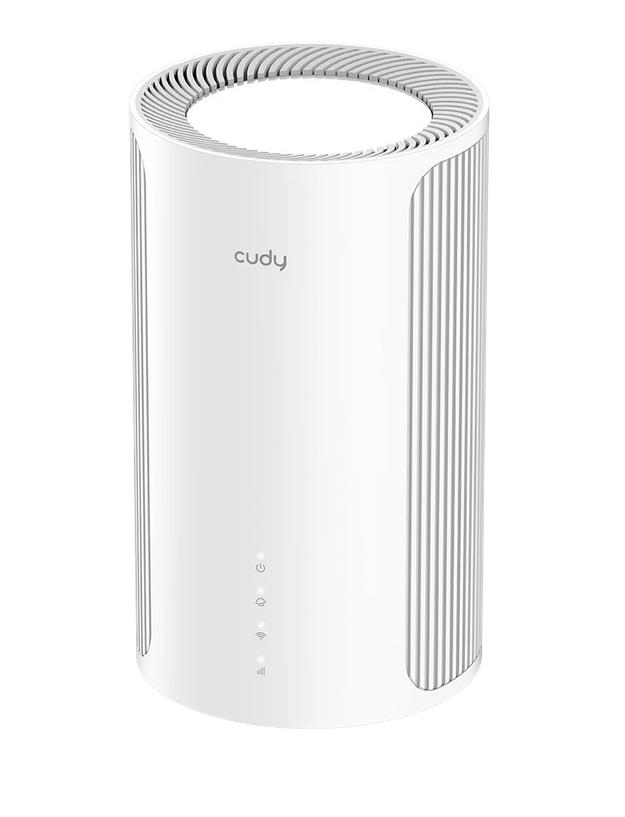

CUDY AX3000 WI-FI 6 5G ROUTER

A 5G WiFi 6 router employing the 3GPP Release 16 standard, with a max 3.4 Gbps download speed. It features dual Qualcomm chipsets, one SIM slot, and a high-capacity AX3000 WiFi 6.  • 5G Rel. 16 with Max 3.4 Gbps DL• UL/DL 4CA, 4×4 MIMO• 4-Stream Dual-Band Wi-Fi 6• 2402 Mbps + 574 Mbps Wi-Fi 1• 3× Gigabit Ethernet Ports• 1× Nano SIM Slot• Cudy Mesh, VPN Server and Client• Cudy App, Cloud Control CPUChipsetIPQ5018CPU Details1.0 GHz Dual-core, ARM Cortex-A53Memory/StorageFlash/ROM128 MB (1 Gbit) NANDDDR/RAM512 MB (4 Gbit) DDR3CellularCellular Standards5G Rel. 16DL 4G Cat. 19 / UL 4G Cat. 18Cellular Antennas6× Internal, 2× SMA Connectors for Customized AntennasDetachable Cellular Antennas ConnectorSMA FemaleSIM Options1× Nano SIM Slot, eSIM (optional)Available VersionsEUEU Version CellularSuitable RegionEurope, Middle East, Africa, Asia-Pacific (Exc. JP, CN), BrazilMax DL Speed3.4 Gbps (NSA), 2.4 Gbps (SA)Max UL Speed550 Mbps (NSA), 900 Mbps (SA)AdvancedDL/UL 4CA, DL 4×4, UL 2×2 MIMOCellular Bands5G Sub 6 GHz: n1/3/5/7/8/20/28/38/40/41/71/75/76/77/78LTE-FDD: B1/3/5/7/8/20/28/32/71LTE-TDD: B38/40/41/42/43/71WCDMA: B1/5/8Wireless5 GHz Wi-Fi Speed2402 Mbps2.4 GHz Wi-Fi Speed574 Mbps5 GHz Wi-Fi Streams2T2R (2×2 MIMO)2.4 GHz Wi-Fi Streams2T2R (2×2 MIMO)Wi-Fi AntennasInternal5 GHz Antenna Gain Max6.78 dBi2.4 GHz Antenna Gain Max4.19 dBiBeamformingTRUEFEM or PA/LNA5 GHz: 2× External2.4 GHz: 2× ExternalRange PerformanceMax: 170 m (558 ft)Indoor WiFi range varies depending on the layout and wall materials. See Wall Performance spec for placement suggestions.Wall PerformanceTwo wooden walls with thickness < 10 cm (4)One concrete wall with thickness < 20 cm (7)InterfacesPhysical ButtonsWPS ButtonReset ButtonGigabit RJ45 Ports3Ethernet NotesOne port supports WAN/LAN configuration, and the rest are LAN portsLEDPowerInternetWi-FiCellularPower InputDC JackPowerPower MethodsDCDC12V 2.5APower AdapterInput: 100 ~ 240 V, 50/60 Hz ACOutput: 12V 2.5A DCMax Power Consumption (W)21.7WWirelessWi-Fi StandardsWi-Fi 6Max Wi-Fi Modulation1024-QAMWi-Fi EfficiencyOFDMAMU-MIMOBSS ColorMax Capacity256Recommended Client Upper Limit100Max Wi-Fi Channel Width160 MHzWi-Fi SecurityWPA/WPA2/WPA3Guest Network2.4 GHz, 5 GHzWPSTRUEGeneralOperation ModesCellular RouterWi-Fi RouterMeshCudy Mesh MainMesh BackhaulWireless BackhaulWired BackhaulCellular APNBand Select (Band Lock)Cellular Mode SelectData RoamingAPN ProfileManual APN ProfileMBNMTU ValueCellular Mode5G NSA Only5G SA Only4G Only3G OnlyAutoWAN ModeDHCPStatic IPPPPOEL2TPPPTPInternet Failover SequenceWANCellularNetworkQoSPer-User Rate LimitingDHCPAddress ReservationDHCP Client ListServerIP VersionsIPv4/IPv6IPv6 ProtocolsRelayDynamic (SLAAC/DHCPv6)Static (Fixed IP)Passthrough464XLATMAP-EDS-LiteIPTV/VLANBridgeTag VLANTTL CustomizationExtendSpoofCustomIGMPIGMP ProxyIGMP SnoopingForwardingPort ForwardingPort TriggeringUPnPDMZFirewallSPI FirewallDoS ProtectionBlock PINGApplication Layer GatewayIPSec PassthroughL2TP PassthroughPPTP PassthroughFTP PassthroughTFTP PassthroughH323 PassthroughSIP PassthroughRTSP PassthroughUtilitiesVPN ServerWireGuardOpenVPNIPsecZerotierPPTPL2TPVPN ClientWireGuardOpenVPNIPsecZerotierPPTPL2TPDNS OptionsDNS over TLSManual DNSRebind ProtectionOverride Clients DNSDNS over TLS ProvidersCloudflareGoogleQuad9CustomWake on LANTRUEOnline DetectionTRUEManagementAll Devices ManagementWi-Fi Time ScheduleMAC FilterIP/MAC BindingPer-Devices ManagementInternet On/OffVPN On/OffOnline Time ScheduleDevice RenameContent ManagementDomain FilterIP FilterSystemLED ControlTRUELocal Control MethodConfig Web PageApp ControlRemote Control MethodConfig Page via HTTPSApp ControlTR069/TR098/TR111/TR181Firmware UpgradeLocal UpdateApp (Over the Air)Online UpdateDiagnostic ToolsDiagnosisPingTracerouteNSLookupSystem Log
