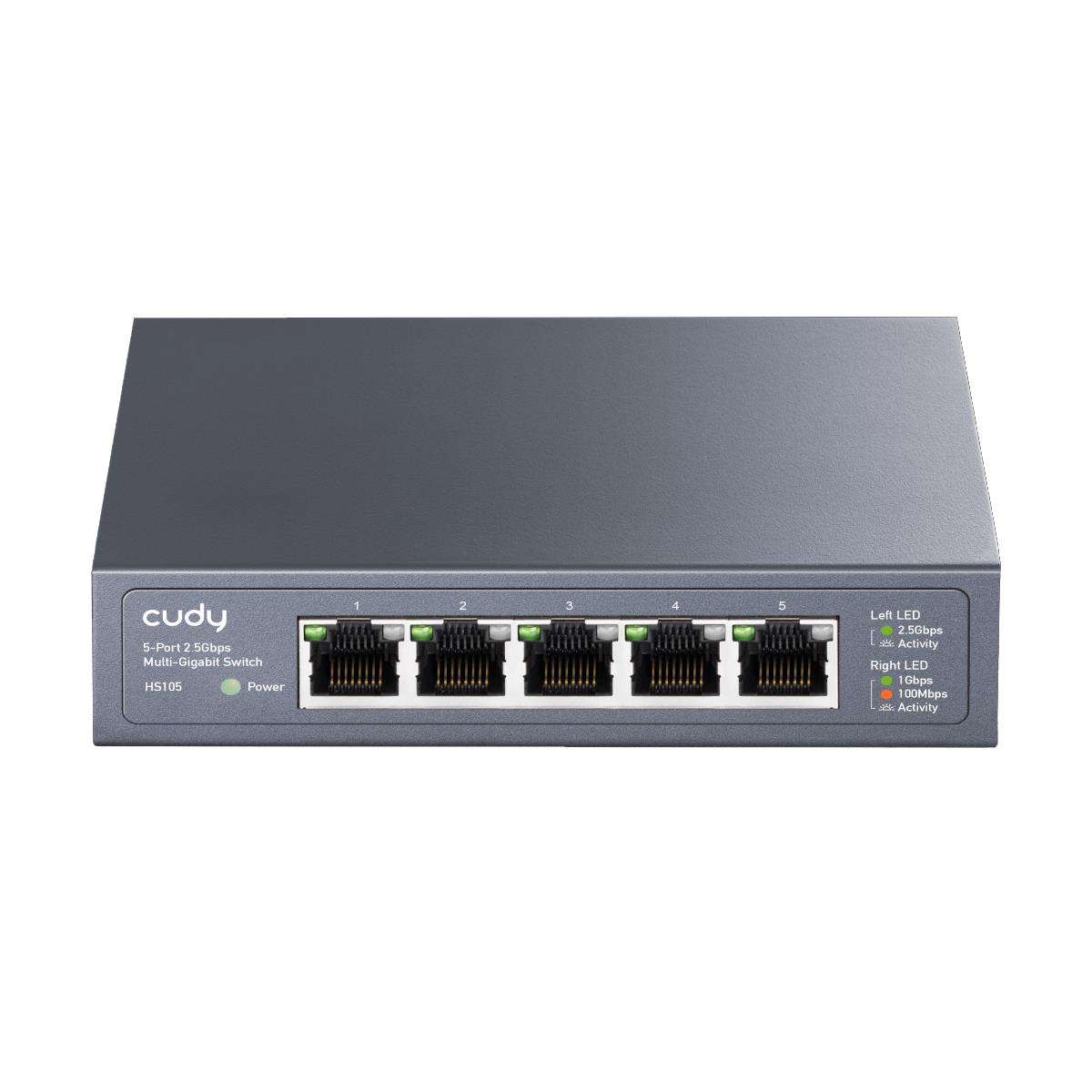

CUDY HS105, 5-Port 2.5G METAL SWITCH 2.5G/1000M/100M/10M

● 5× 100/1000/2500 Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
● IEEE 802.3x flow control and 4 Mbit packet buffer prevents packet loss
● Power saving strategy saves power consumption when ports are idle
● IGMP for high-efficienct multi-cast transmitting
● Loop detection blocks loop automatically, improving reliability
● Desktop and wall-mounting

ModelHS105Standard configurati5× 100/1000/2500 Mbps RJ-45 Ethernet PortsSwitching Capacity25 GbpsThroughput18.6 MppsPacket Buffer4 MbitMAC Address8KJumbo Frame15 KBTransfer ModeStore and forwardMTBF100000 hourNetwork protocol

IEEE802.3u (100Base-TX)

IEEE802.3ab (1000Base-T)

IEEE802.3bz (2.5GBase-T)

IEEE802.3x (Flow control)

Network Medium

100Base-TX : Cat5  or higher (≤100m)

1000Base-TX : Cat5 or higher (≤100m)

2.5GBASE-T: Cat 5e (≤50m), Cat 6 or higher (≤100m)

Working Environment

Working Temperature：-0~40°C

Storage Temperature：-40~70°C

Working Humidity ：0%~100%, non-condensing

Storage Temperature：5%~90%, non-condensing

Structure Size

Product Size：119×85×28 mm (4.69×3.35×1.1 inches)

InstallationDesktop, Wall-MountingPower Saving  Saves power consumption when ports are idlePower Voltage

Adpter Input Voltage ：AC 100-240 V

Switch Input Voltage:：DC 12V 1APower Consumption

Max: 10.5W

Idle: 4.7W

ESD Protection±4KV contact discharge and ±8KV air dischargeGrounding PointGrounding PointPackage Content

Switch

Power Adapter

Quick Installation Guide

Mounting Kit
