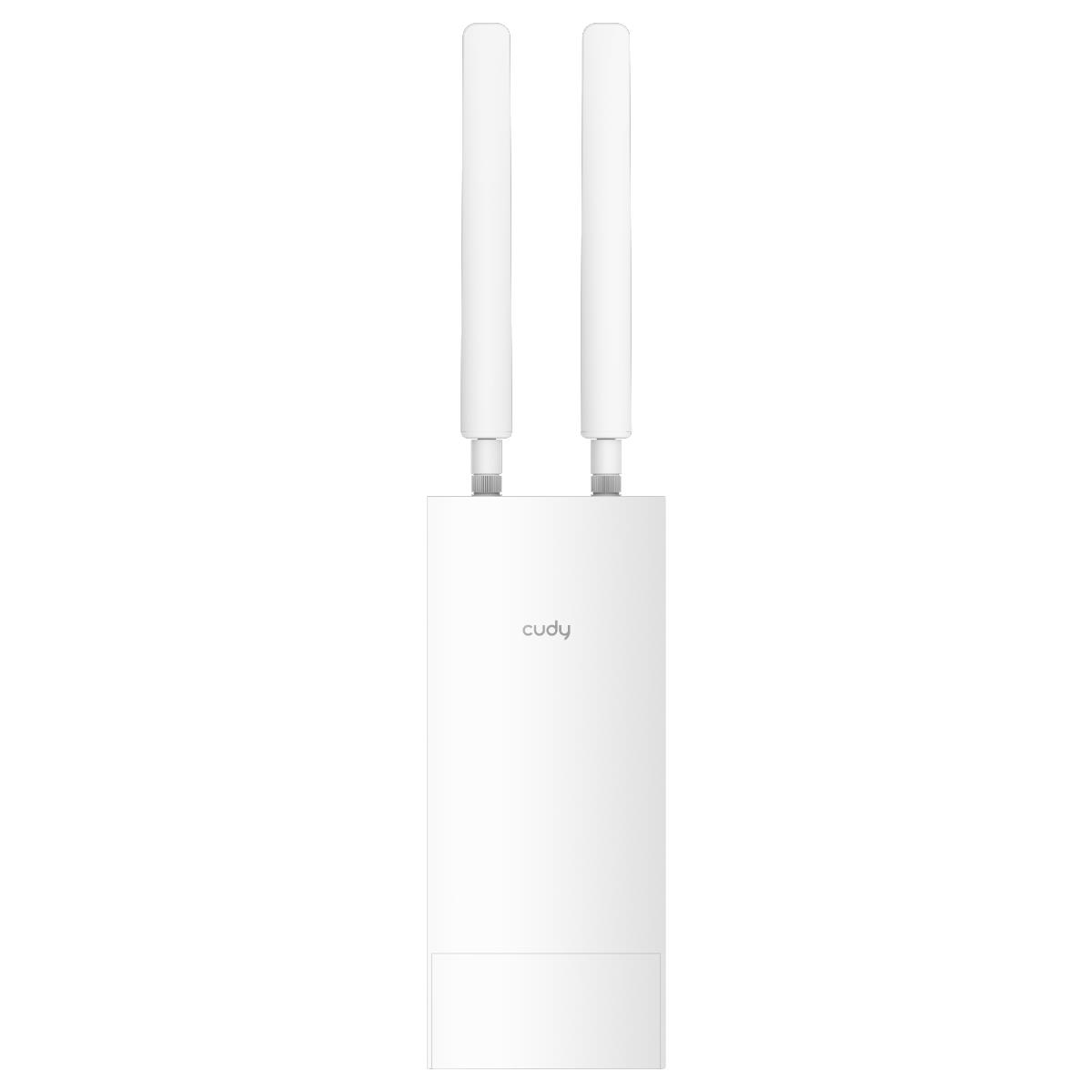

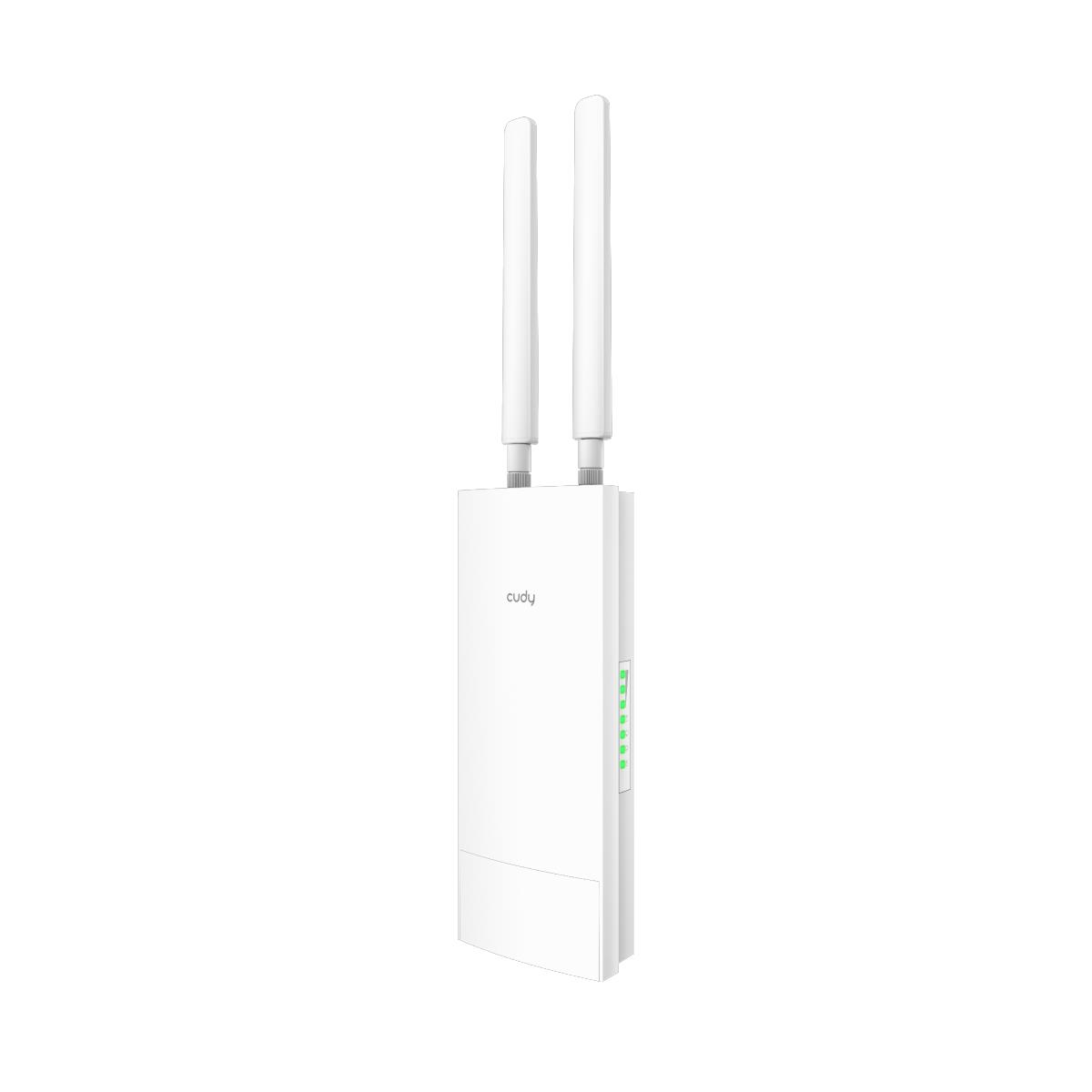

CUDY LT400 OUTDOOR N300 WI-FI 4G LTE ROUTER

LTE FDD/TDD Cat 4
N300 Wi-Fi

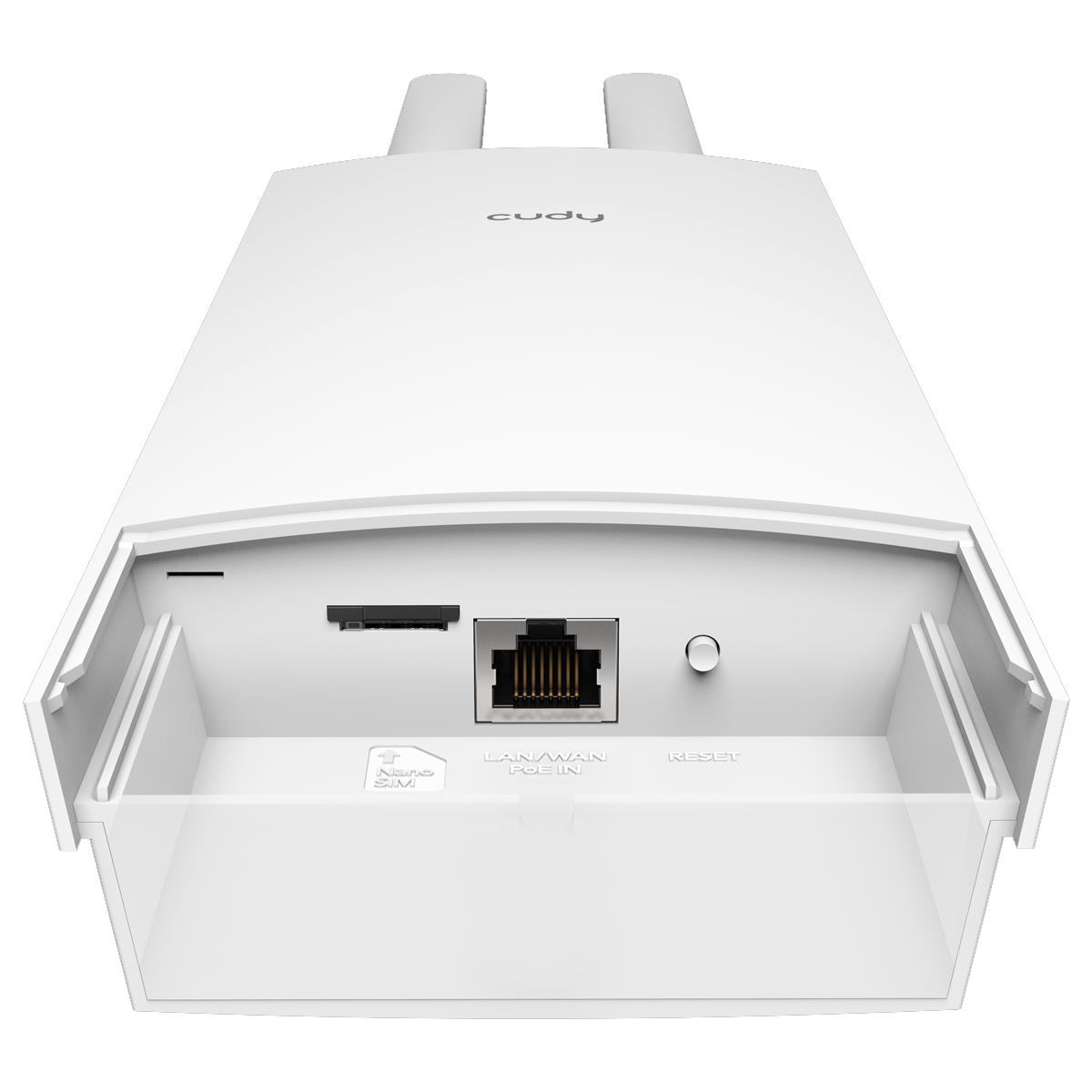

1× 10/100Mbps WAN/LAN
Nano SIM Slot
24V Passive PoE
2× Internal WiFi Antennas + 2× Detachable 4G Antennas
VPN & DDNS
IP65 WaterProof

ModelLT400 OutdoorLTE Module Model EU Version

EC200A-EU

LTE-FDD: B1/B3/B7/B8/B20/B28A
LTE-TDD: B38/B40/B41
WCDMA: B1/B8
GSM/EDGE: B3/B8

LTE Module Model US Version

EC25-AFXD

LTE-FDD: B2/B4/B5/B12/B13/B14/B66/B71
WCDMA: B2/B4/B5

Flash64 Mbit (8 MB) FlashDDR512 Mbit (64 MB) DDRInterface1× 10/100Mbps WAN/LAN RJ45 Port (24V/0.5A passive PoE, 4/5+,7/8-)1× Reset Button1× Nano SIM SlotLEDSystem/Internet/Ethernet/2.4G WiFi/5GHz WiFi/Signal StrengthAntenna2× Internal Wi-Fi Antennas2× External Detachable 4G AntennasGain5 dBiWireless FeaturesWireless StandardsIEEE 802.11n Frequency2.4 GHzSignal Rate300 Mbps (2.4 GHz)

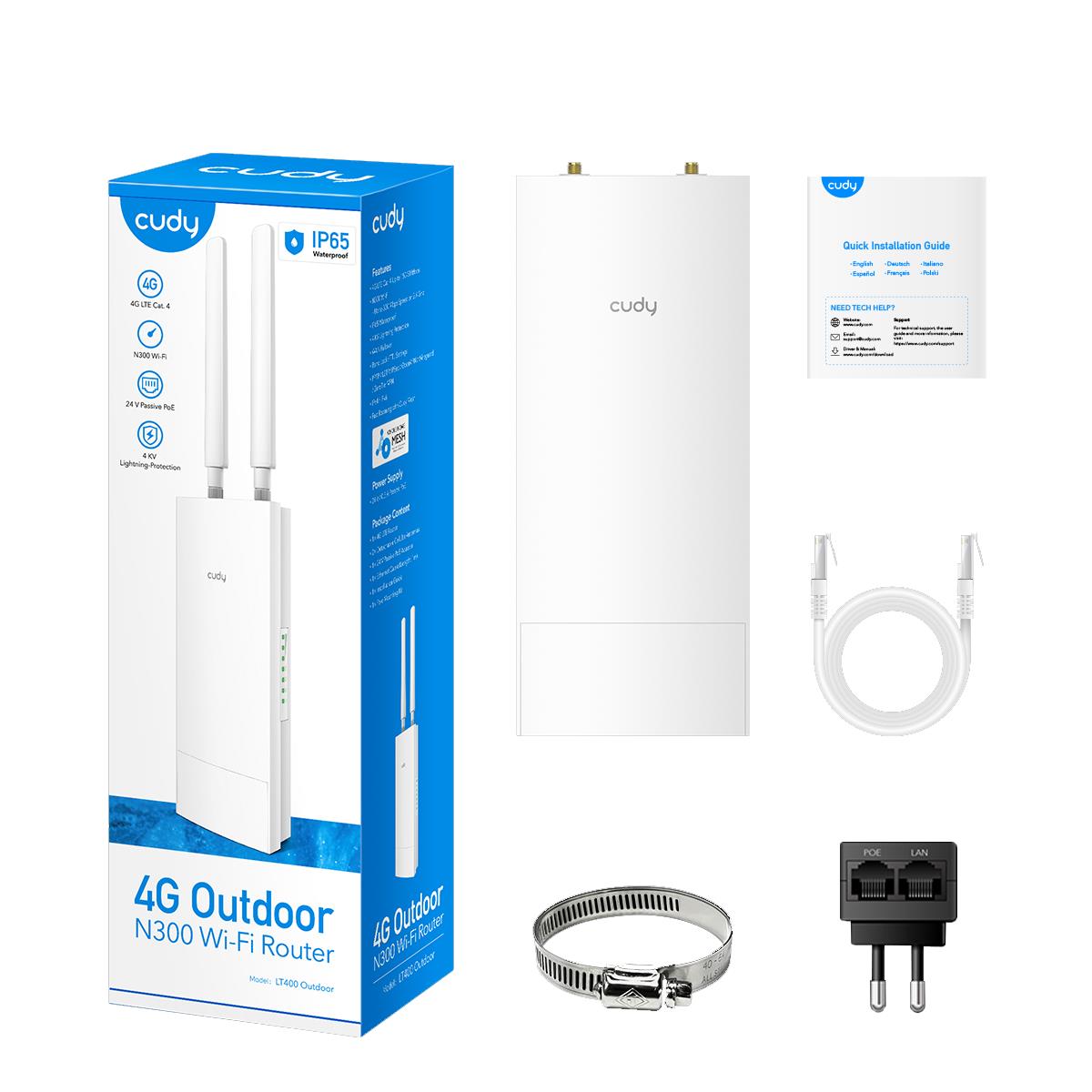

Compatible with 802.11b/g/n Wi-Fi standardsTransmit PowerCE: <20dBmFCC:<30dBmWireless ModesEnable/Disable Wireless Radio, WMMWireless SecurityWEP, WPA/WPA2, WPA-PSK/WPA2-PSKSoftware FeaturesWAN Type4G/Dynamic IP/Static IP/PPPoEDHCPServer, DHCP Client List, Address ReservationDynamic DNSCompatible with 15 more DDNS providersNATPort Forwarding, Port Triggering, UPnP, DMZVPN Sever & ClientPPTP/L2TP/OpenVPN/WireGuard/IPSec/ZerotierCWMP ProtocolTR069 / TR098 / TR111 / TR181ACS Server CompatibilityGenieACS, OpenACSManagementAccess Control, Local Management, Remote Management, Wake on LANTTLExtend/Spoof/CustomDNSCloudflare/Google/CustomInternet ProtocolsIPv4 / IPv6 IPv6RelayDynamic(SLAAC/DHCPv6)Static (Fixed IP)PassthroughMAP-E (Dual-stack)DS-Lite (Dual-stack)SMSSend/Receive4G Band LockSupportOthersPackage Contents2× detachable 4G antennas24V/0.5A passive PoE adapterPole Installation AccessoryEthernet CableQuick Installation GuideSystem RequirementsMicrosoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10/11, MAC OS,NetWare, UNIX or Linux, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser Subscription with an internet service provider (for internet access)
