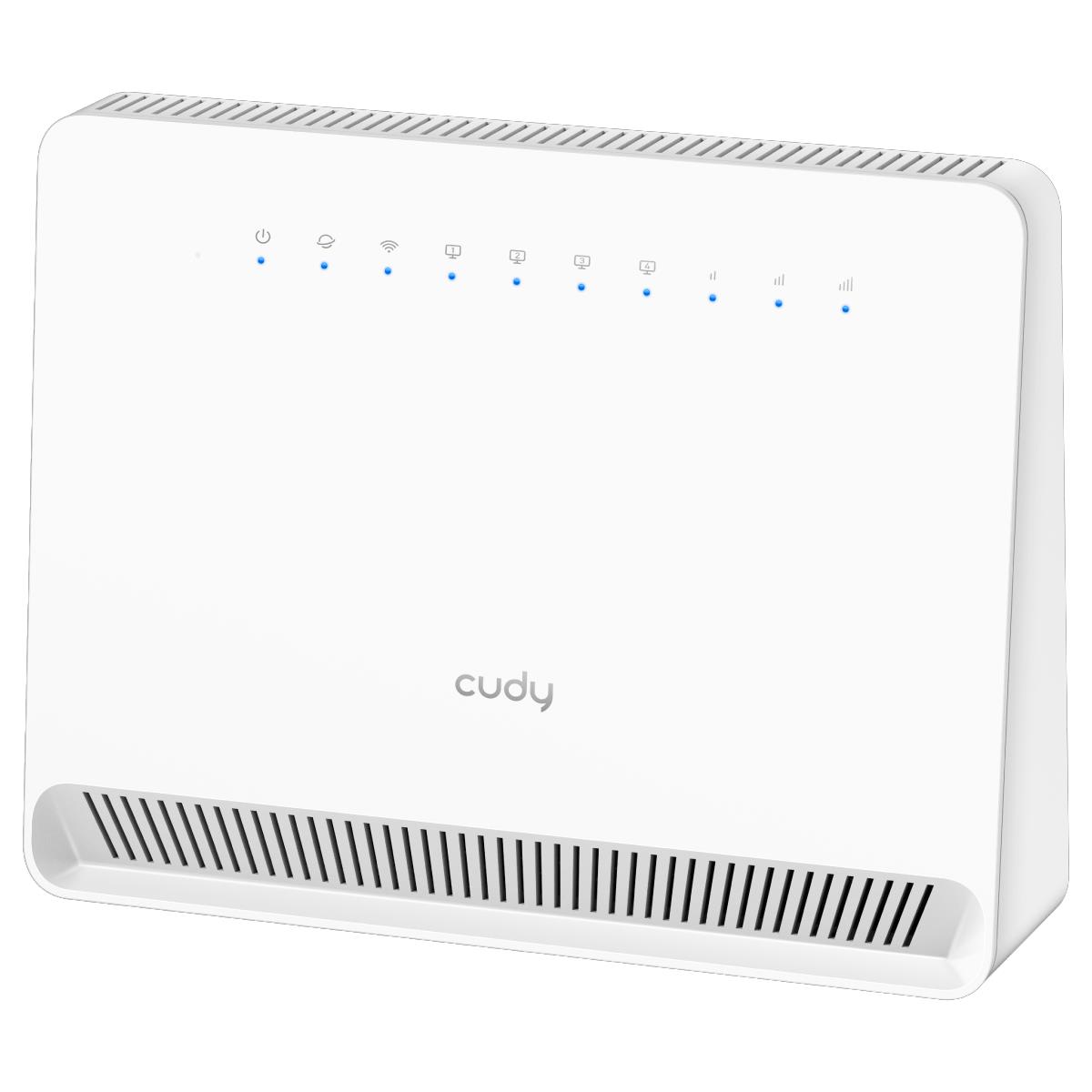

CUDY LT700V AC1200 WI-FI 4G LTE ROUTER CAT6, VoLTE

4G LTE Advanced Cat. 6 up to 300 Mbps DL
Calling with VoLTE via 1× RJ11 Port
Speedy AC1200 Dual-Band WiFi
4× Gigabit Ports
2× Internal 4G Antennas + 2× Internal Wi-Fi Antennas
2× SMA Connectors for Extension 4G Antennas (antennas not included)
Nano SIM Card Slot
VPN Zerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTP
Cudy Mesh as Main Mesh Node

Model

LT700V

4G 4G UE Category

4G LTE Cat. 6

MIMO, 2-CA

Cellualr Module and Working Bands

EG060W-EA (on EU Model)

LTE-FDD: B1/3/5/7/8/20/28/32;
LTE-TDD: B38/40/41/42 (Optional)/43 (Optional);
Up to 2 × CA: B1+B1/3/5/7/8/20/28; B3+B3/5/7/8/20/28;
B7+B5/7/8/20/28; B20+B32; B38+B38; B40+B40; B41+B41;

B42+B42(Optional); B43+B43(Optional);
WCDMA: B1/5/8

EG060K-NA (on US Model)

LTE-FDD: B2/4/5/7/12/13/14/25/26/29/30/66/71;
LTE-TDD: B41/48

4G Speeds

Up to 300 Mbps Download

Up to 50 Mbps Upload

LTE-FDD: Max 300 Mbps (DL)/Max. 50 Mbps (UL)
LTE-TDD: Max 226 Mbps (DL)/Max. 28 Mbps (UL)

DC-HSDPA: Max 42 Mbps (DL)/HSUPA: Max 5.76 Mbps (UL)
WCDMA: Max 384 Kbps (DL/UL)

Cellular Antennas

2× Internal Antennas

2× External SMA Connectors (Detachble Antennas not Included)

Cellular Features

VoLTE

SMS

Band Lock (Band Select)

TTL Settings

Cellular Data Statistics, Data Limit, SMS Alert for Usage

WAN Failover

Wi-Fi Wi-Fi Standard Wi-Fi 5 (802.11ac/n/g/b/a) Wi-Fi Speeds AC1200 Up to 867 Mbps on 5 GHz (20/40/80 MHz) Up to 300 Mbps 2.4 GHz (20/40 MHz) Wi-Fi Features

MU-MIMO

Beamforming

Transmit Power Adjustment

Wi-Fi Encryption

WPA-PSK

WPA2-PSK

WPA-PSK/WPS2-PSK

Hardware CPU 880 MHz Dual-Core CPU ROM 16 MB (128 Mbit) Nor RAM 128 MB (1 Gbit) DDR3 Ethernet Ports 4× Gigabit Ports Voice Interfaces 1× RJ11 Port Buttons WPS Button, Reset Button, Power On/Off LED Power, Network, Wi-Fi, Phone, WAN/LAN, Celluar Signal Strength Power DC 12 V ⎓ 1.5 A Software VPN

VPN Server and Client

Options: Zerotier, Wireguard, OpenVPN, IPSec, L2TP, PPTP

DNS

Override All Clients DNS, Rebind Protection, DNS Over TLS, Manual DNS

DNS over TLS

Options: Cloudflare, Google, Quad9

Multi-Mode  Router (4G/WAN), WISP (4G as Backup), WISP Clients Management Internet Block, Internet/Wi-Fi Schedule, VPN Block, Device Rename Network Management QoS, DDNS, WAN/LAN Switch, Firewall SPI Firewall, DoS Protection, Block PING NAT Port Forwarding, Port Triggering, UPnP, DMZ TTL Extend, Spoof, Custom IPv6 Relay, Dynamic(SLAAC/DHCPv6), Staic (Fixed IP), Passthrough, MAP-E, DS-Lite DHCP Server, Client List, Address Reservation CWMP TR069, TR098, TR111, TR181, Support STUN Physical Dimension (W×D×H)

190×50×148.8 mm

7.48×1.97×5.85 inches

Package Content

4G LTE Router

Power Adapter
RJ45 Ethernet Cable

Quick Installation Guide

Requirements Environmental

Operating Temperature: 0 °C – 40 °C (32 °F – 104 °F)

Operating Humidity: 10% – 90 % non-condensing

Storage Temperature: -30 °C – 70 °C (-22 °F – 158 °F)

Storage Humidity: 5% – 95 % non-condensing

System

Windows, MAC OS, NetWare, UNIX, or Linux

Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other Javascript-enabled browser

If you are using 4G as your internet access, you will need a nano SIM card with an active data subscription,

If you are using WAN as your internet access, you will need a fiber/cable/DSL modem or any other wired internet source.
