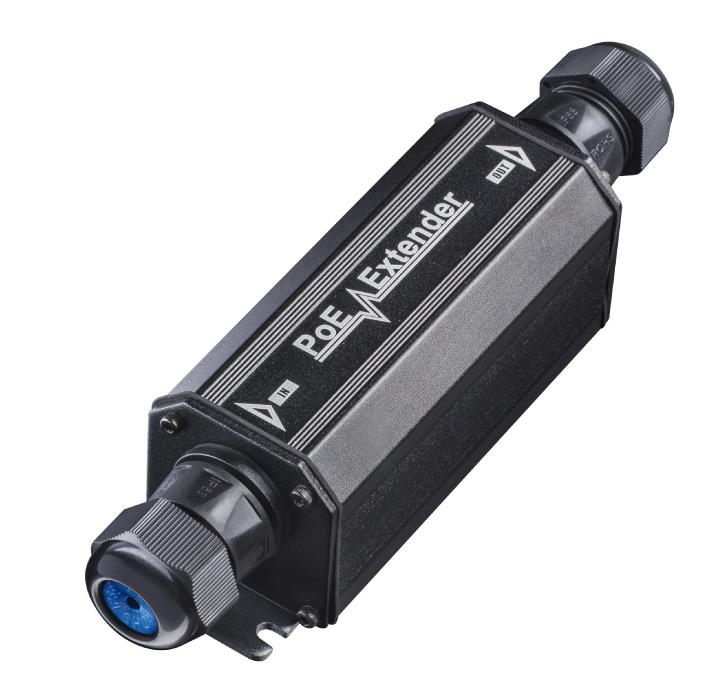

CUDY POE15 GIGABIT POE+ OUTDOOR WATERPROOF EXTENDER, IP67

● Compatible with IEEE802.3af and IEEE802.3at

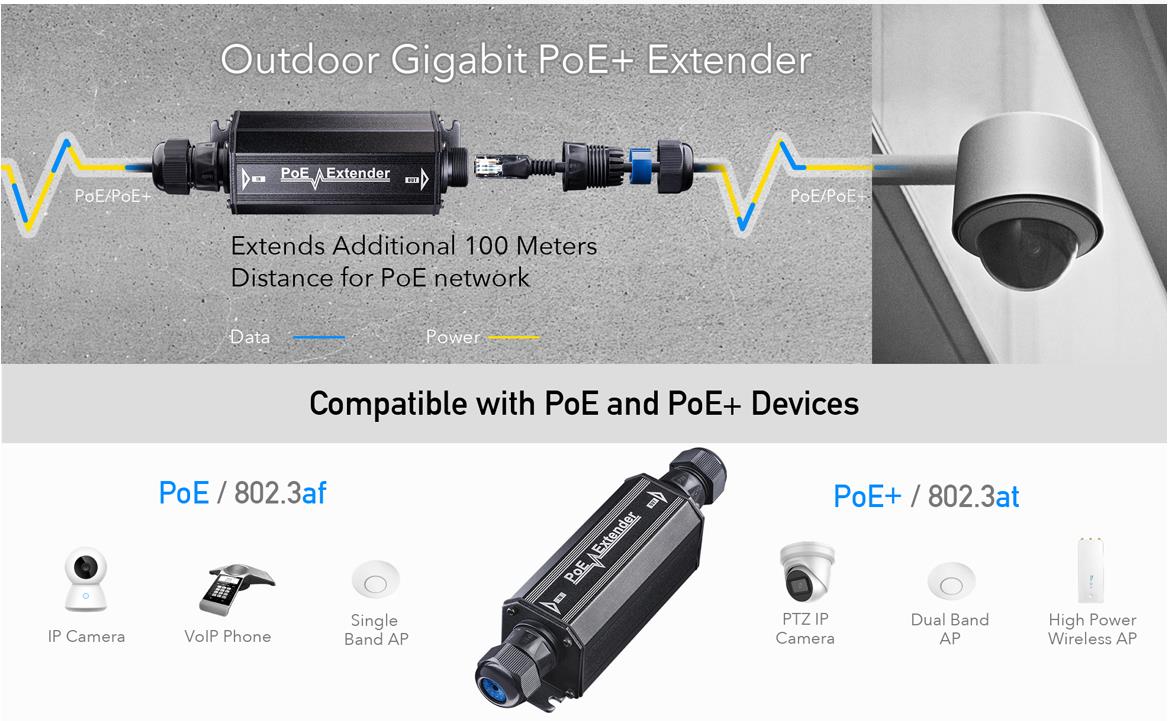

● Extends the range of PoE and Ethernet an additional 100 meters
● No additional power supply is required
● Automatically detects and protects PoE equipments from being
damaged by incorrect installation
● Full-rate network throughout the whole extended distance
Compact size, Wall-Mountable design

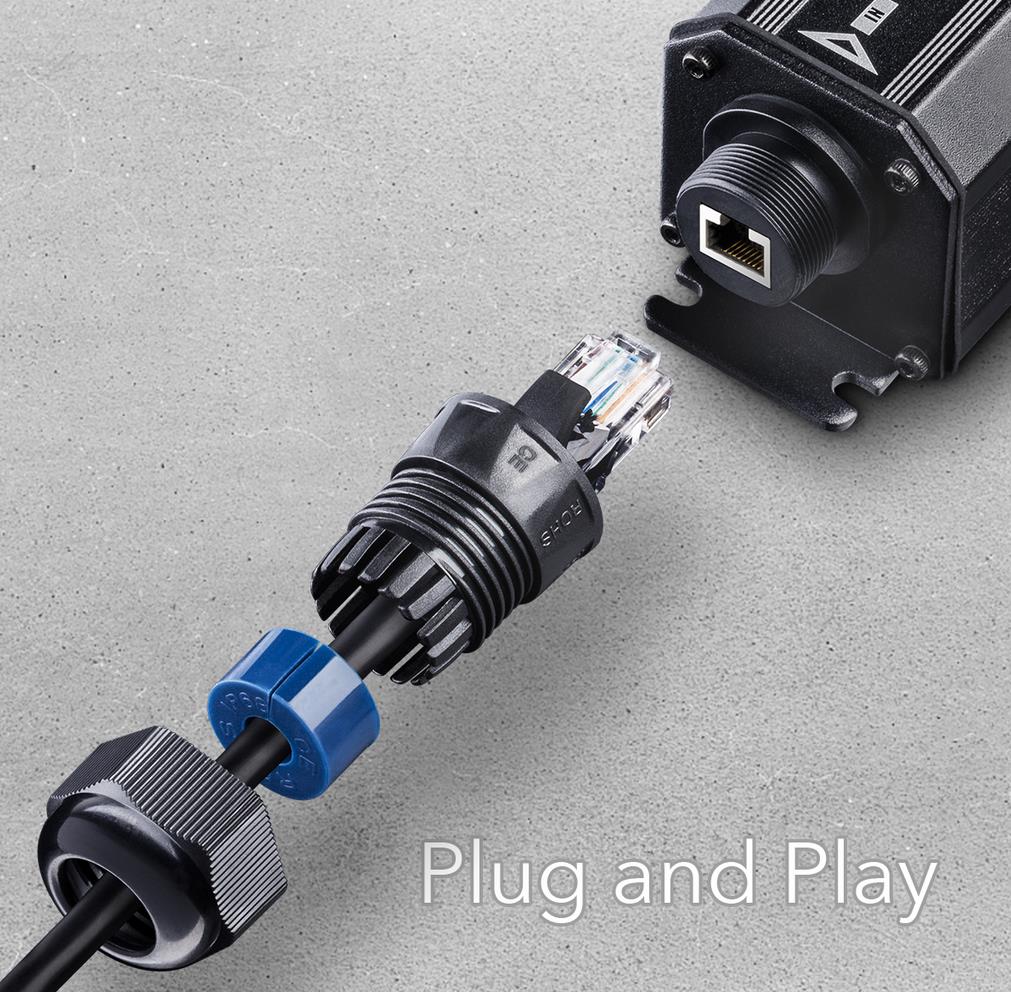

● Easy plug-and-play installation
● EMI standards complies with FCC, CE class B

Product Name POE15 No. of channels 1(PoE IN) into 1(PoE OUT) Pass Through Data Rates 10/100/1000 Mbps half/full duplex Power over Ethernet input Pin Assignment and Polarity:Both 1/2 (-), 3/6 (+) and  7/8 (-), 4/5 (+) Power over Ethernet Output

Pin Assignment and Polarity:1/2 (+), 3/6 (-)

Output Power: up to 25W

Indicators LED indicators are located on the RJ45 connectorPower indicator: PoE enabledNetwork indicator: Link/Act Connectors Shielded RJ-45, EIA 568A and 568B Network cables Shielded category 5 (or higher) Dimensions 185mm x 45mm x 45mm Mounting Wall of shelf Environment Indoor or Outdoor Environmental Conditions

Operating Ambient Temperature: -25 to 55℃

Operating Humidity: Maximum 90%, Non-condensing

Storage Temperature: -30 to 70℃

Storage Humidity: Maximum 95%, Non-condensing

Regulatory Compliance IEEE 802.3af (PoE), IEEE 802.3at (PoE+)
