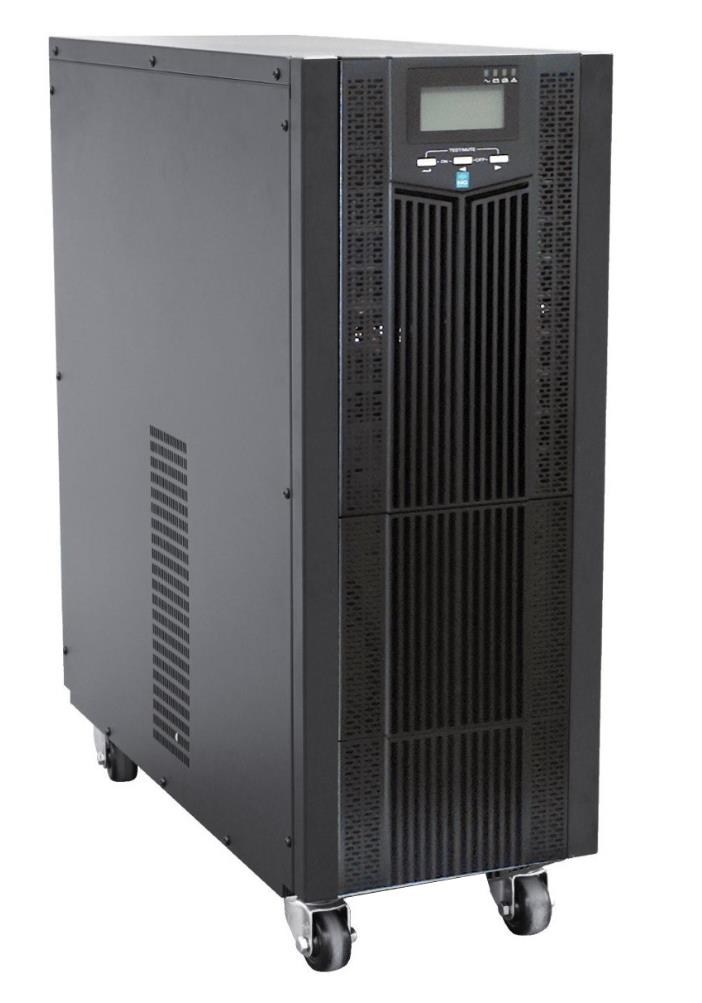

NG ON-LINE UPS 6000VA, PF 1, 16 x 12V9A, USB, RS232, ΟΘΟΝΗ

Η αποστολή του λόγω βάρους γίνεται με παλέτα.
Απαιτείται σύνδεση του από ηλεκτρολόγο σύμφωνα με τις οδηγίες χρήσης και σύνδεσης.

● High frequency on-line double conversion technology
● Advanced DSP and 3-level technology
● Output power factor 1.0
● Active power factor correction (APFC), input power factor up to 0.99
● High efficiency 95% (up to 98% in ECO mode)
● Advanced digital parallel technology
● Wide input voltage range (110 ~ 288 Vac) and frequency range (40 ~ 70 Hz)
● 50 / 60 Hz frequency auto sensing
● Two modes of frequency conversion: 50 Hz input / 60 Hz output or 60 Hz input / 50 Hz output
● Dual-input design, supporting independent bypass
● Flexible battery configuration (settable 16 – 20 pcs batteries)
● Digitally controlled charger
● High charging current available (Max. 12 A)
● Charging voltage and current configured by demands
● Linear derating in low voltage input reducing battery discharging times, extending the service life of battery
● Intelligent battery management, automatic floating / equalizing charge control, charger dormancy control, increasing battery life by 50%
● Ability to switch on the UPS with batteries
● Settable delayed start time when mains power is restored, reducing the impact on power grid or generator
● Fan speed varies intelligently with temperature, reducing noise and extending its service life
● Equipped with self-aging function
● Compact internal layout, miniaturized the complete unit for small footprint
● LCD+LED display, multi-functional keys operation, friendly human-machine interface
● Powerful background software for parameters configuration
● Advanced multi-platform communications: RS232, USB, RS485, SNMP and dry contacts communication interfaces
● Effective software and hardware protection function, robust self-diagnostic function, and abundant event log for check
● RS232 and smart card slot included, compatible with NG-UPS-SNMP1card

MODEL
NG-UPS-ON6
Capacity
6 kVA / 6000 W

INPUT
Input wiring
Single-phase three-wire (1Φ + N + PE)
Rated voltage
208 / 220 / 230 / 240 Vac
Voltage range
    110 ~ 176 Vac (linear derating between 50% and 100% load);176 ~ 288 Vac (no derating)Rated frequency
50 / 60 Hz (auto-sensing)
Frequency range
40 ~ 70 Hz
Power factor
≥0.99
Bypass voltage range
– 40% ~ +15% (settable)
Total harmonic distortion (THDi)
≤5%
OUTPUT
Output wiring
Single-phase three-wire (1Φ + N + PE)
Rated voltage
208 (PF=0.9) / 220 / 230 / 240 Vac
Voltage regulation
±1%
Frequency
Synchronized to bypass in mains mode; 50 / 60 Hz ± 0.1% Hz in battery mode
Waveform
Sinusoidal
Power factor
1
Total harmonic distortion (THDv)
≤1% (linear load);≤4% (non-linear load)Crest factor
3:1
Overload
 105% ~ 110% for 10 min, 110% ~ 125% for 1 min,126% ~ 150% for 30 s
BATTERIES
 DC voltage
192 Vdc (192 ~ 240 Vdc settable)
 Number of battery
16 pcs
 Inbuilt battery (standard model)

12 V / 9 Ah × 16
 Charging current

Model: 1 A;

Recharge time

Standard model: 90% capacity restored in 8 hours;

SYSTEM
Efficiency
≥ 94% at 100% load, max. 95% at 60% load, ≥ 98% in ECO mode
Transfer time
0 ms
Protections
Short-circuit, overload, overtemperature, battery low voltage, overvoltage, undervoltage and fan failure
Max. number of parallel connections
4
Communications
RS232 (standard), USB / RS485 / dry contacts / SNMP / battery temperature compensation (optional)
Display
LCD + LED
OTHERS
Operating temperature
0℃ ~ 40℃
Storage temperature
-25℃ ~ 55℃ (without battery)
Relative humidity
0 ~ 95% (non-condensing)
Altitude
≤ 1000 m, derating 1% for each additional 100 m
IP rating
IP 20
Noise level at 1 m
≤55 dB

Dimensions (W × D × H) (mm)
191 × 465 × 711 (S), 191 × 465 × 350 (H)

Packaged dimensions (W × D × H) (mm)
310 × 654 × 941 (S), 318 × 595 × 475 (H)

Net weight (kg)
53 (S), 14.5 (H)

Gross weight (kg)
61 (S), 16 (H)
